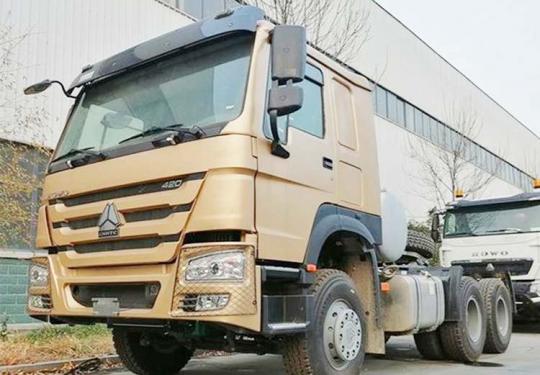

Home > Products > Tractor Truck > Howo 420HP Tractor Truck
Place of Origin: China
Product Name: Tractor Truck
Certification: ISO/3C/BV/IFA/SGS
Minimum Order Quantity: 1 Unit
Packaging Details:Nude or Waxing in Roro or bulk ship
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Model: ZZ4257V3241W
Engine:
Engine model: D12.42-20, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling, mechanical high-pressure oil pump system
Maximum output: 420PS (309kW) at 2000 rpm
Maximum torque: 1820Nm at 1100-1400rpm
Bore: 126mm
Stroke: 155mm
Displacement: 11.596L
Clutch: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission:
Transmission, model HW19710, 10 forward and 2 reverse
Ratio: 4.42 4.8 5.73
Front Axle: New HF9 series, with drum brake system
Rear Axle: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering: ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Wheels&Tyres:
Rims: 8.5-20,10 hole-steel
Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab: Long cab, all-steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner
Dimensions inmm:
Wheel base (mm): 3200+1350
Front wheel track (mm): 2022/2041
Rear wheel track (mm):1830/1830
Overhang(front/rear) (mm):1500/725
Approach angle(°):16
Departure angle(°):70
Overall Dimension (mm): 6800x2496x2958
Weight in kg:
Rated loading capacity at fifth wheel (kg):15660
Dead weight (kg):9210
Gross vehicle weight (kg):25000
Gross combination weight（kg）：7000
Front axle loading capacity (kg):9000
Rear axle loading capacity (kg):2*16000
Performance Maximum driving speed(km/h):102(reference data)
Maximum gradeability (%):33
Minimum ground clearance(mm):265
Minimum turning radius (m):18.5
Fuel consumption(L/100km):40(reference data)
On-demand customization, please leave a message for consultation, welcome to contact us to make an appointment to visit the factory.
We accept payment via TT or LC. Normally, it is 30% TT as a deposit, and the balance should be paid before shipment. As for the LC, we accept sight LC, 30 days LC, 60 days LC, and 90 days LC.
From the time we receive your deposit or LC, it will take about 45 days to produce the trucks, and about 35 days for machinery. For Africa, South America, and shipment takes about 40 days. For Asia and Southeast Asia countries, shipment takes about 2 weeks.
For Sinotruk trucks, the normal oil consumption is about 35L/100Km, which depends on the actual loading situation. It will consume more when the truck is heavily loaded or on slopes.
We provide a 1-year warranty from the date of your B/L, or 60,000Km, whichever comes first.
We offer a wide range of trucks and machinery in brand new condition. Please note that we do not sell used trucks. If you require used trucks, you should look for a supplier that offers them.
If you need stock trucks, please let us know your detailed requirements, such as the model year, payload, etc. We will check our stock system to see if we have trucks or machinery that meet your needs. However, stock availability is not guaranteed.
Yes, we can paint your logo on the truck after it is finished.
Our Sinotruk factory is located in Jinan city, Shandong Province. It is a 1.5-hour high-speed train ride from Beijing, a 2.5-hour flight from Guangzhou, and a 4-hour high-speed train ride from Shanghai.
We sell in factories without middlemen, so our price will be better than that of trading companies
From the moment the customer places an order, we will be equipped with a professional team. Professional personnel are responsible for the design, production, tracking and transportation. We adopt the principle of responsibility system, and the quality can be guaranteed.
We have our own R & D team and design team. Our team has received professional training and good education, and is skilled in using CAD, SW and other drawing tools
The staff will give the most favorable and accurate quotation to the customer within 2 hours according to the customer's requirements, make the most appropriate purchase scheme for the customer, and formulate the perfect solution according to the customer's after-sales demand within 10 hours.
