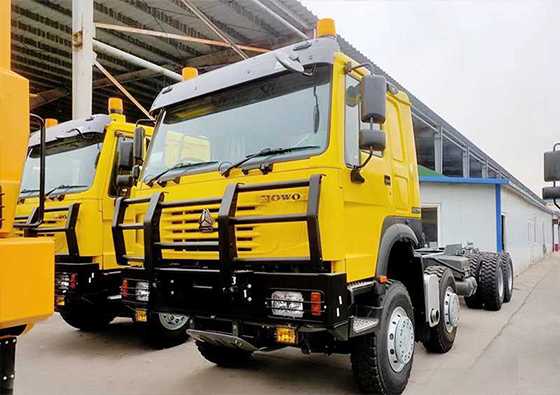

Sinotruk Howo 8x4 Truck Chassis

  • Chassis Model: ZZ3317V3867B1
  • Engine: weichai
  • Engine model: WP12.400E201, Euro II, 400 HP
  • Fuel Tank: 400L
  • Overall Dimension: 10300*2550*3500 mm
  • Tyres: 12.00R20, Radial (steel wire) Tires. 12+1 Pics

Place of Origin: China

Product Name: Tractor Truck

Certification: ISO/3C/BV/IFA/SGS

Minimum Order Quantity: 1 Unit

Packaging Details:Nude or Waxing in Roro or bulk ship

Delivery Time: 20 working days after received your advance payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 4,000units per month

Sinotruk HOWO 8X4 Dump Truck Chassis

Chassis Model

ZZ3317V3867B1

Driving Type

LHD (RHD is optional)

Cabin

HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.
With Military Steel Bumper

Engine

Make: WICHAI
Diesel 4-stroke direct injection diesel engine
Engine model: WP12.400E201, Euro II, 400 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 11.596 L

Transmission

HW19710, 10F & 2R
Ratio: 14.28,  10.62,  7.87,  5.88,  4.38,  3.27,  2.43,  1.80,  1.34, 1.00,  13.91(R1),  3.18(R2)

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

VGD95, 1x9000 KGS
Steering with double T-cross section beam

Rear Axle

MCP16ZG, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 5.26

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, Radial (steel wire) Tires. 12+1 Pics

Fuel Tank

400L

Overall Dimension

10300*2550*3500 mm

On-demand customization, please leave a message for consultation, welcome to contact us to make an appointment to visit the factory.

Our Factory

Our Factory

Shipping

Shipping

Frequently Asked Questions

1. What kind of payment do you accept?

We accept payment via TT or LC. Normally, it is 30% TT as a deposit, and the balance should be paid before shipment. As for the LC, we accept sight LC, 30 days LC, 60 days LC, and 90 days LC.

2. How long will I receive my trucks or machinery?

From the time we receive your deposit or LC, it will take about 45 days to produce the trucks, and about 35 days for machinery. For Africa, South America, and shipment takes about 40 days. For Asia and Southeast Asia countries, shipment takes about 2 weeks.

3. What is the oil consumption for your trucks?

For Sinotruk trucks, the normal oil consumption is about 35L/100Km, which depends on the actual loading situation. It will consume more when the truck is heavily loaded or on slopes.

4. What is the warranty you provide?

We provide a 1-year warranty from the date of your B/L, or 60,000Km, whichever comes first.

5. Are your trucks brand new or used?

We offer a wide range of trucks and machinery in brand new condition. Please note that we do not sell used trucks. If you require used trucks, you should look for a supplier that offers them.

6. Do you have stocked trucks or machinery?

If you need stock trucks, please let us know your detailed requirements, such as the model year, payload, etc. We will check our stock system to see if we have trucks or machinery that meet your needs. However, stock availability is not guaranteed.

7. Can I paint my LOGO on the truck?

Yes, we can paint your logo on the truck after it is finished.

8. Where is your factory located?

Our Sinotruk factory is located in Jinan city, Shandong Province. It is a 1.5-hour high-speed train ride from Beijing, a 2.5-hour flight from Guangzhou, and a 4-hour high-speed train ride from Shanghai.

Our Advantages

Price advantage:

We sell in factories without middlemen, so our price will be better than that of trading companies

Quality advantage:

From the moment the customer places an order, we will be equipped with a professional team. Professional personnel are responsible for the design, production, tracking and transportation. We adopt the principle of responsibility system, and the quality can be guaranteed.

Professional advantages:

We have our own R & D team and design team. Our team has received professional training and good education, and is skilled in using CAD, SW and other drawing tools

Service advantages:

The staff will give the most favorable and accurate quotation to the customer within 2 hours according to the customer's requirements, make the most appropriate purchase scheme for the customer, and formulate the perfect solution according to the customer's after-sales demand within 10 hours.
