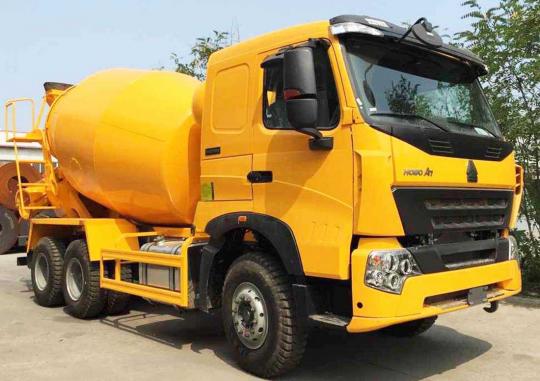

Howo A7 6x4 Mixer Truck

  • Model: ZZ1257N3647N1
  • Cabin: HW76, one sleeper with A/C
  • Engine: WD615.47, Euro 2, 371HP
  • Transmission: HW19710, 10F & 2R
  • Front Axle: HF9, 1x9000KG
  • Rear Axle: HC16, 2x16000KG
  • Mixer Body: 8 CBM

Place of Origin: China

Product Name: Mixer Trucks

Certification: ISO/3C/BV/IFA/SGS

Minimum Order Quantity: 1 Unit

Packaging Details:Nude or Waxing in Roro or bulk ship

Delivery Time: 20 working days after received your advance payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 4,000units per month

Chassis Model

ZZ1257N3647N1

Driving Type

LHD (RHD is optional)

Cabin

A7-W cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts,  adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.47, Euro 2, 371 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission

HW19710, 10F & 2R, with PTO

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9, 1x9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:5.73

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension: 10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

315/80R22.5, tubeless tyres with one spare tyre

Fuel Tank

300L

Mixer Body

Tank Body: 8 Cubic Meters

Mixer Pump: Eton (USA Brand)

Motor: Eton (USA Brand)

Speed Reducer: Bonfiglioli (Italy Brand)

Overall Dimension

9000*2550*3950 mm
