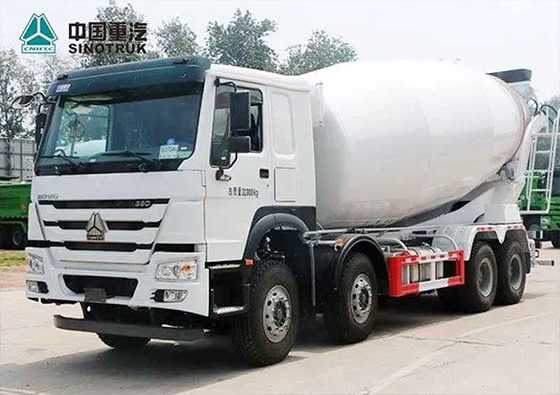

Sinotruk 8X4 Concrete Mixer Truck

  • Engine model: WD615.47, Euro II, 371HP
  • Optional: WD615.62 / WD615.87 / WD615.69 / WD615.47
  • Overall Dimension: 10820*2550*3900mm

Place of Origin: China

Product Name: Mixer Trucks

Certification: ISO/3C/BV/IFA/SGS

Minimum Order Quantity: 1 Unit

Packaging Details:Nude or Waxing in Roro or bulk ship

Delivery Time: 20 working days after received your advance payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 4,000units per month

Product Features

1. The tank body uses double helical blades that makes its density moderate, with symmetrical mixing board on the front taper place; double blades and guiding blades of discharge are installed on the outlet of tank, which makes the discharge more evenly, faster in speed, and convenient for the pumping transportation of other devices (such as automobile pump).

2. Low angle for mixing drum can extend the service life of hydraulic pump, motor and reducer. The sub frame uses high intensity square tube with damping in the central area that can play role when vehicle is at full load and under the bad conditions of road, which can lower the center of gravity of truck and make it move more smoothly.

3. The upload production of this mixer adopts multiple advanced technology, which can produce various types of mixer in volume such as 3m3, 5m3,6m3,8m3, 9m3,10m3, 12 m3 etc.

Truck Model

ZZ1317N3667A

ENGINE

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.47, Euro II, 371HP

With Oil Bath Filter System

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Optional: WD615.62 / WD615.87 / WD615.69 / WD615.47

Cabin

HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

High steel bumper, With inter-cooler fence

Option: air suspension driver’s seat, high roof double bunk, fire extinguisher, warning light

Clutch

Single-plate dry coil-spring clutch, hydraulically operating with air assistance

Transmission

HW15710 / HW19710, 10F & 2R

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

HF9, 2 X 9000 KGS

Steering with double T-cross section beam

Optional:HF7, 2 x 7000kgs, drum type

Rear Axle

HC16,2 x 16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio::4.8 / 5.73

Optional:ST16,double reduction, speed ratio:3.93,4.42,4.8/ MCY13, 2 x 13000kgs

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Overall Dimension

10820 * 2550 * 3900mm

Mixer tank effective volume

Size:16cbm

With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Optional:EVB, ABS, AUTOMATICSLACK ADJUSTER

Tyres

12.00R20,Radial (steel wire) Tires,1 spare tyre

Option: 12.00-20, 12R22.5, 315/80R22.5, 12.00R24

Electrics

Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Instrument Panel

Active check central control with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging.

Color

Optional

On-demand customization, please leave a message for consultation, welcome to contact us to make an appointment to visit the factory.

Our Factory

Our Factory

Shipping

Shipping

Frequently Asked Questions

1. What kind of payment do you accept?

We accept payment via TT or LC. Normally, it is 30% TT as a deposit, and the balance should be paid before shipment. As for the LC, we accept sight LC, 30 days LC, 60 days LC, and 90 days LC.

2. How long will I receive my trucks or machinery?

From the time we receive your deposit or LC, it will take about 45 days to produce the trucks, and about 35 days for machinery. For Africa, South America, and shipment takes about 40 days. For Asia and Southeast Asia countries, shipment takes about 2 weeks.

3. What is the oil consumption for your trucks?

For Sinotruk trucks, the normal oil consumption is about 35L/100Km, which depends on the actual loading situation. It will consume more when the truck is heavily loaded or on slopes.

4. What is the warranty you provide?

We provide a 1-year warranty from the date of your B/L, or 60,000Km, whichever comes first.

5. Are your trucks brand new or used?

We offer a wide range of trucks and machinery in brand new condition. Please note that we do not sell used trucks. If you require used trucks, you should look for a supplier that offers them.

6. Do you have stocked trucks or machinery?

If you need stock trucks, please let us know your detailed requirements, such as the model year, payload, etc. We will check our stock system to see if we have trucks or machinery that meet your needs. However, stock availability is not guaranteed.

7. Can I paint my LOGO on the truck?

Yes, we can paint your logo on the truck after it is finished.

8. Where is your factory located?

Our Sinotruk factory is located in Jinan city, Shandong Province. It is a 1.5-hour high-speed train ride from Beijing, a 2.5-hour flight from Guangzhou, and a 4-hour high-speed train ride from Shanghai.
