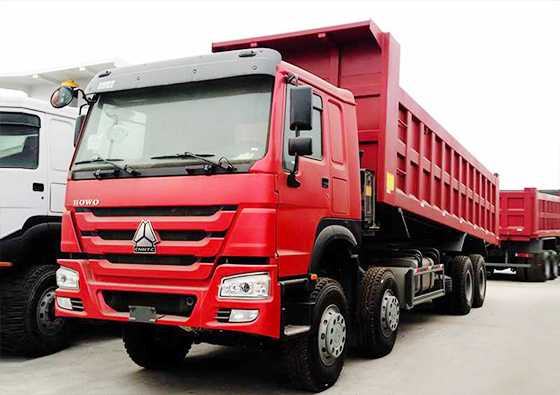

Howo 8x4 Dump Truck 28 CBM

  • Model: ZZ3317N3567W
  • Cabin: HW76, one sleeper with A/C
  • Engine: WD615.47, Euro 2, 371HP
  • Transmission: HW19710, 10F & 2R
  • Front Axle: HF9, 2x9000KG
  • Rear Axle: HC16, 2x16000KG
  • Cargo Body: 7300x2300x1700 mm

Place of Origin: China

Product Name: Dump Truck

Certification: ISO/3C/BV/IFA/SGS

Minimum Order Quantity: 1 Unit

Packaging Details:Nude or Waxing in Roro or bulk ship

Delivery Time: 20 working days after received your advance payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 4,000units per month

Chassis Model

ZZ3317N3567W

Driving Type

LHD (RHD is optional)

Cabin

HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.47, Euro 2, 371 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission

HW19710, 10F & 2R, with PTO

Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9,2x9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.

Ratio:5.73

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members

Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, radial tyres with one spare tyre

Fuel Tank

300L

Cargo Body

7300*2300*1700mm, 28.54 CBM, Floor 8mm Side 6mm

Overall Dimension

10100*2550*3500mm

On-demand customization, please leave a message for consultation, welcome to contact us to make an appointment to visit the factory.

Our Factory

Our Factory

Shipping

Shipping

Frequently Asked Questions

1. What kind of payment do you accept?

We accept payment via TT or LC. Normally, it is 30% TT as a deposit, and the balance should be paid before shipment. As for the LC, we accept sight LC, 30 days LC, 60 days LC, and 90 days LC.

2. How long will I receive my trucks or machinery?

From the time we receive your deposit or LC, it will take about 45 days to produce the trucks, and about 35 days for machinery. For Africa, South America, and shipment takes about 40 days. For Asia and Southeast Asia countries, shipment takes about 2 weeks.

3. What is the oil consumption for your trucks?

For Sinotruk trucks, the normal oil consumption is about 35L/100Km, which depends on the actual loading situation. It will consume more when the truck is heavily loaded or on slopes.

4. What is the warranty you provide?

We provide a 1-year warranty from the date of your B/L, or 60,000Km, whichever comes first.

5. Are your trucks brand new or used?

We offer a wide range of trucks and machinery in brand new condition. Please note that we do not sell used trucks. If you require used trucks, you should look for a supplier that offers them.

6. Do you have stocked trucks or machinery?

If you need stock trucks, please let us know your detailed requirements, such as the model year, payload, etc. We will check our stock system to see if we have trucks or machinery that meet your needs. However, stock availability is not guaranteed.

7. Can I paint my LOGO on the truck?

Yes, we can paint your logo on the truck after it is finished.

8. Where is your factory located?

Our Sinotruk factory is located in Jinan city, Shandong Province. It is a 1.5-hour high-speed train ride from Beijing, a 2.5-hour flight from Guangzhou, and a 4-hour high-speed train ride from Shanghai.

Our Advantages

Price advantage:

We sell in factories without middlemen, so our price will be better than that of trading companies

Quality advantage:

From the moment the customer places an order, we will be equipped with a professional team. Professional personnel are responsible for the design, production, tracking and transportation. We adopt the principle of responsibility system, and the quality can be guaranteed.

Professional advantages:

We have our own R & D team and design team. Our team has received professional training and good education, and is skilled in using CAD, SW and other drawing tools

Service advantages:

The staff will give the most favorable and accurate quotation to the customer within 2 hours according to the customer's requirements, make the most appropriate purchase scheme for the customer, and formulate the perfect solution according to the customer's after-sales demand within 10 hours.
